Car Windshield HUD Speed Display

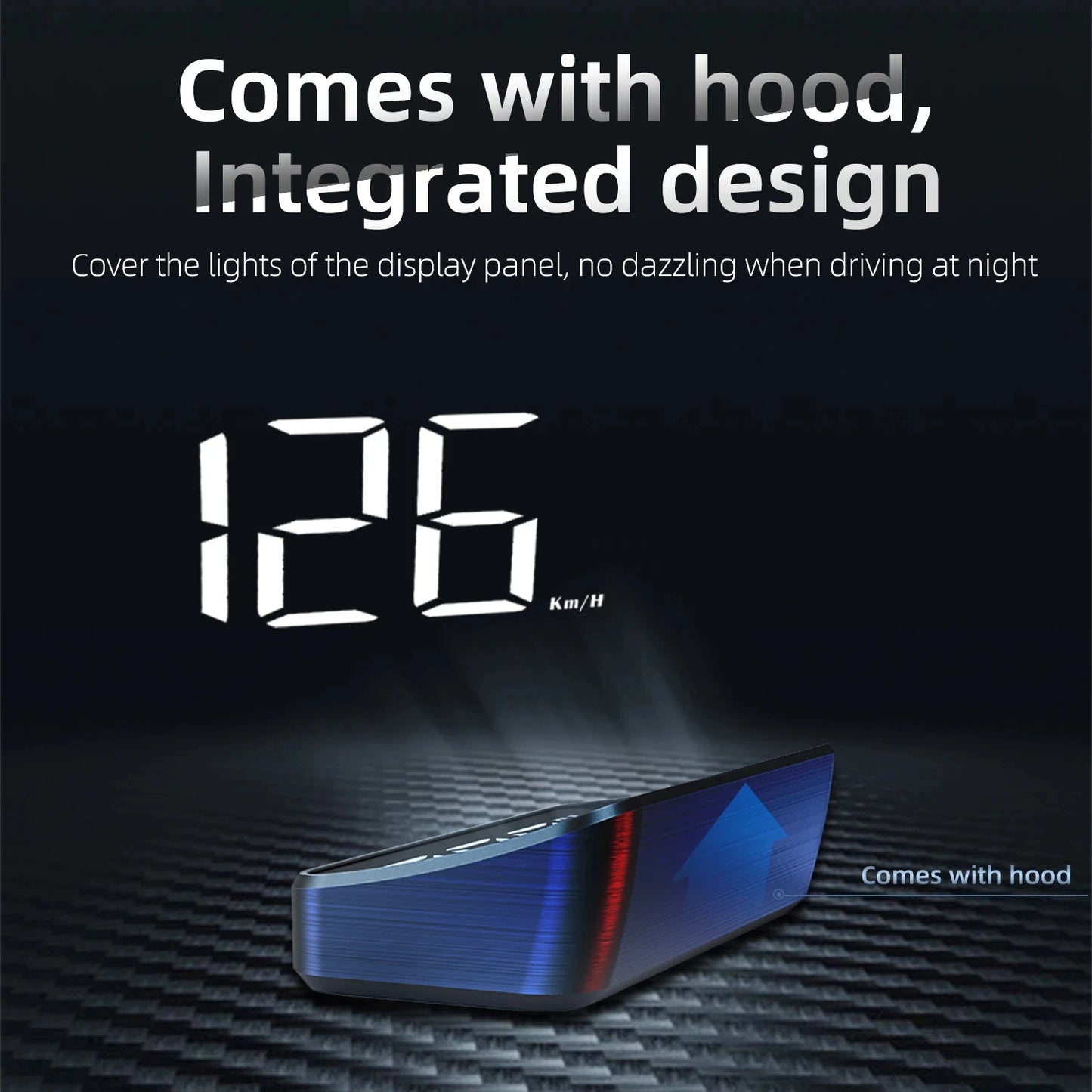

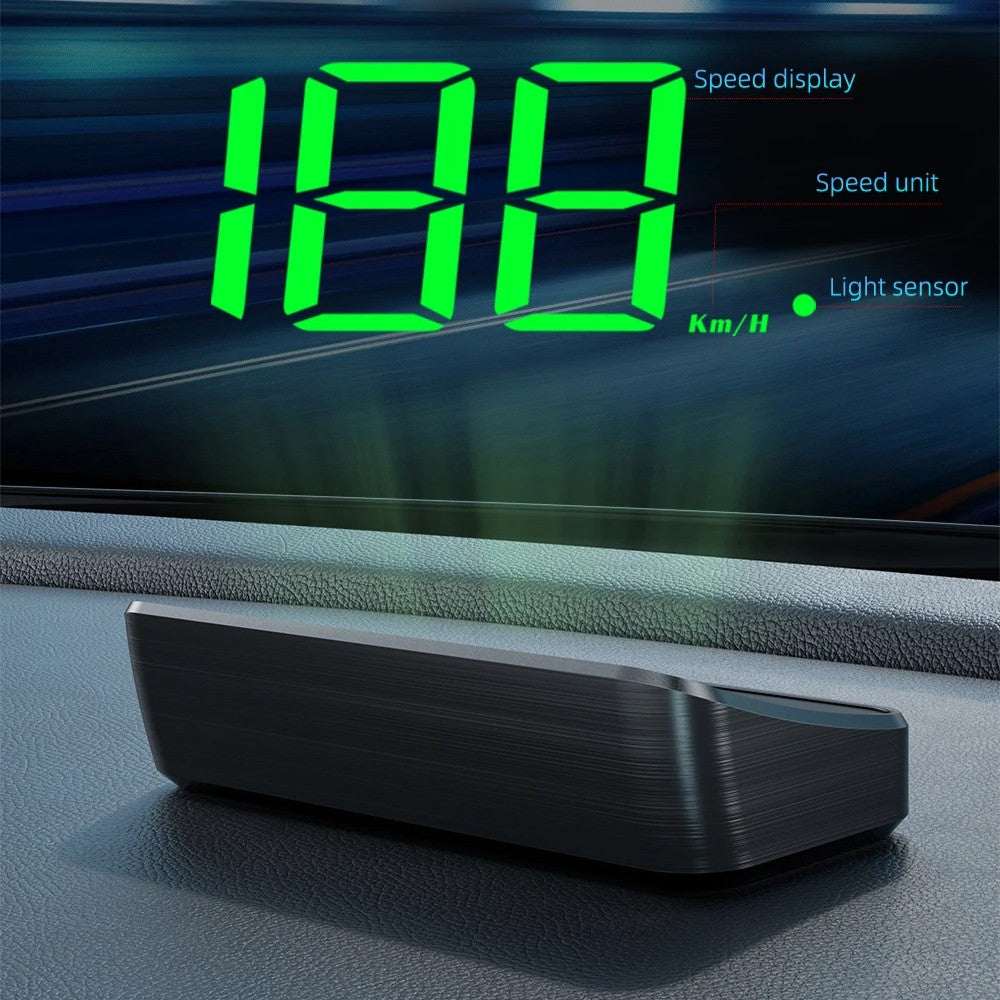

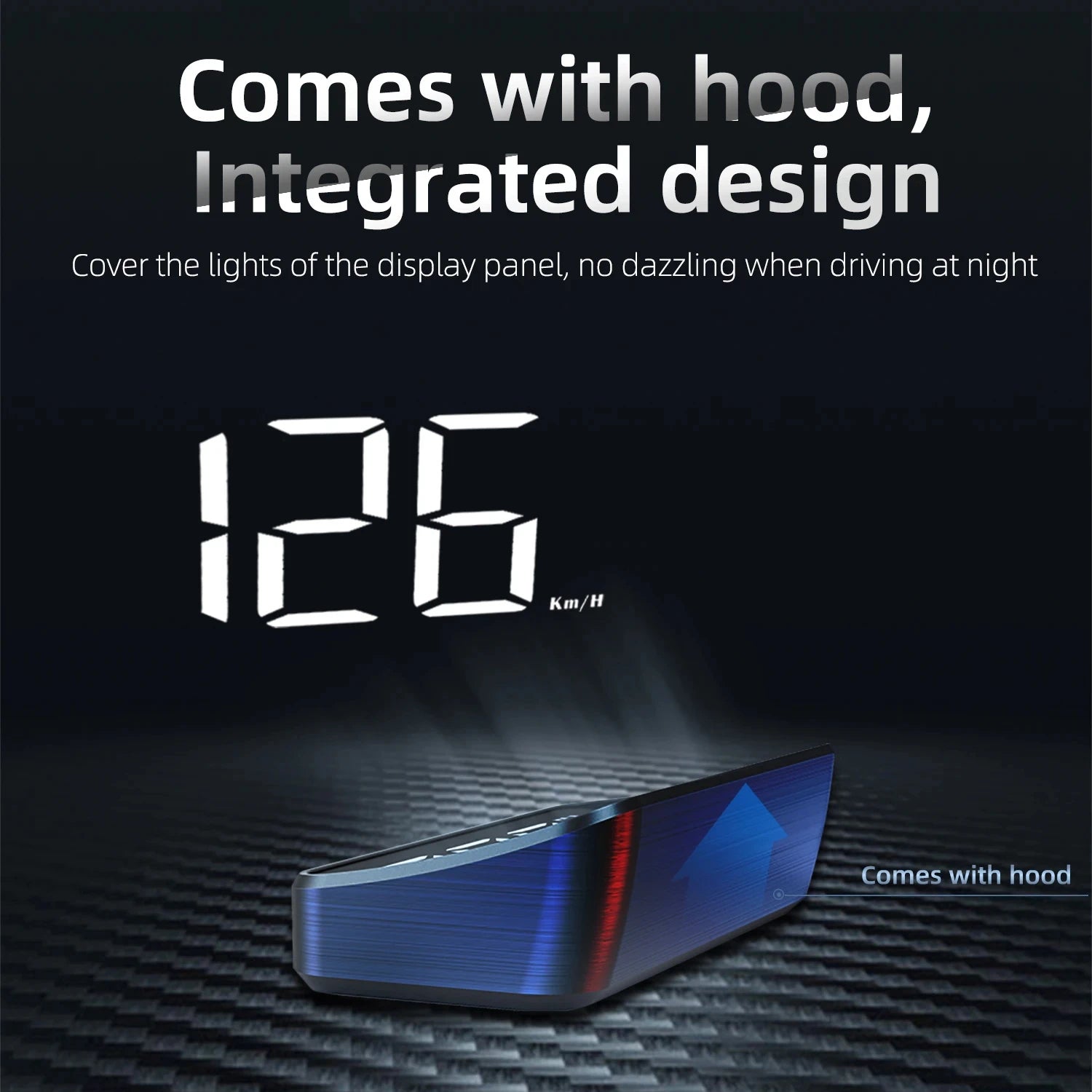

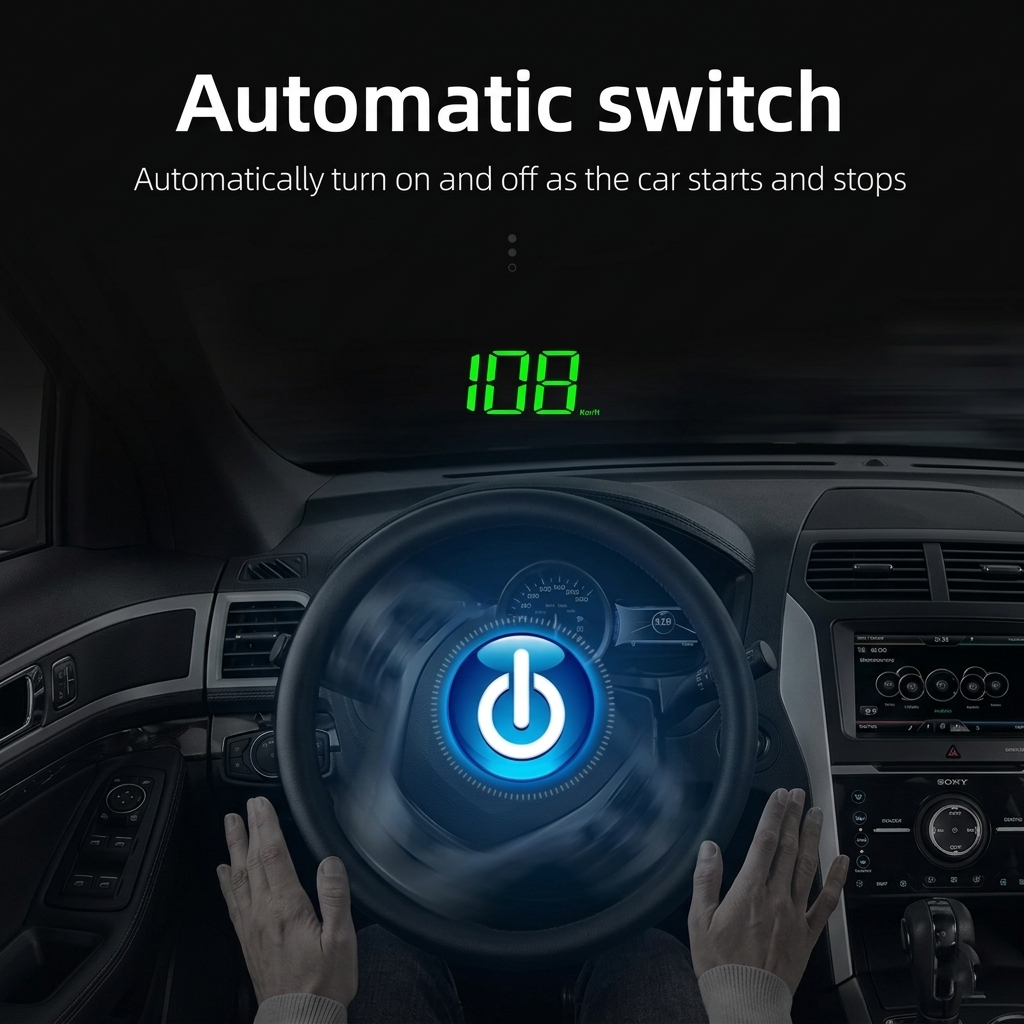

A plug-and-play GPS speedometer with windshield HUD that powers on with ignition via cigarette lighter or USB. Bright LED displays speed, driving time, and overspeed alarm, readable day or night. Includes reflective film for clearer windshield projection.

Specifications:

• Model: M2

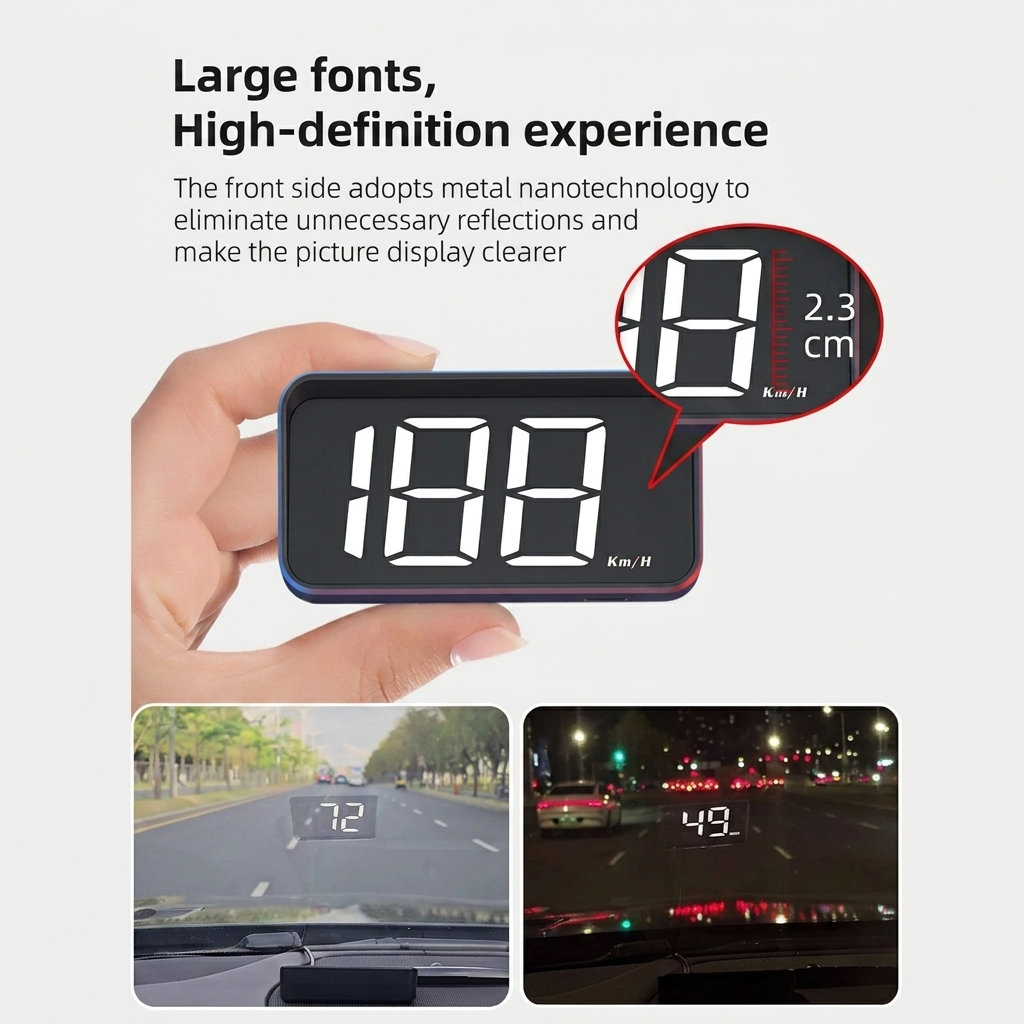

• Display Type: LED digital (7-segment)

• Speed Unit: km/h

• Signal Source: GPS (built-in module)

• GPS Refresh Rate: 1–10 Hz

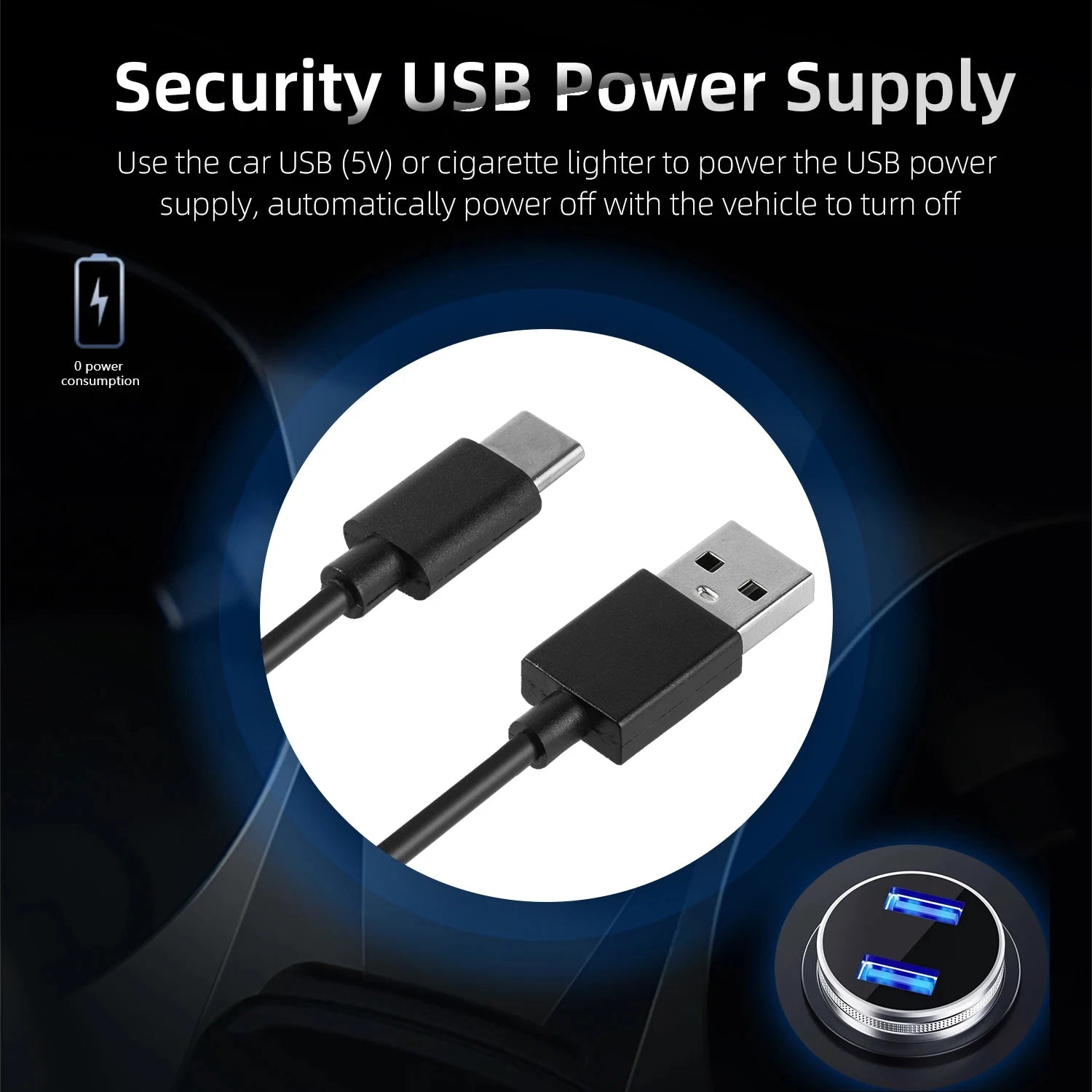

• Power Input: 12–24V (via cigarette lighter or USB)

• Operating Temperature: -20°C to 80°C

• Housing Material: ABS plastic

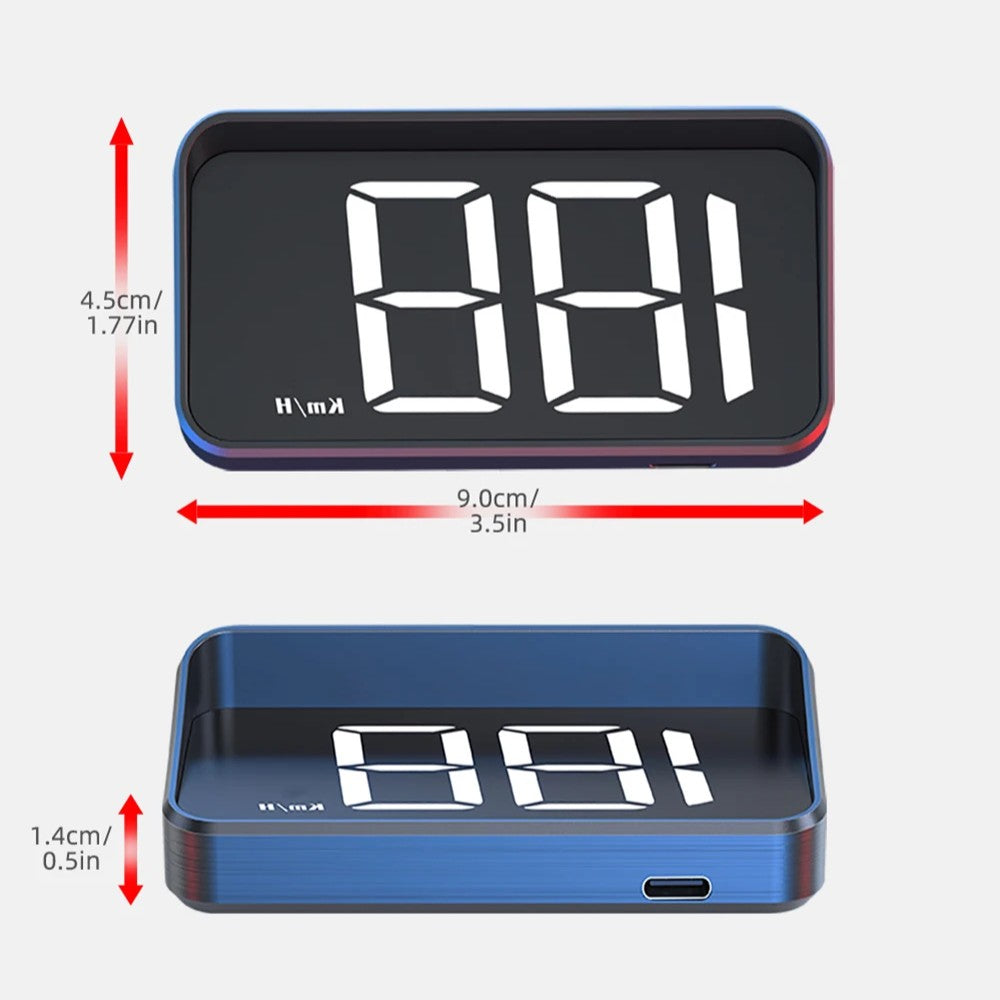

• Dimensions: approx. 140 × 50 × 22 mm

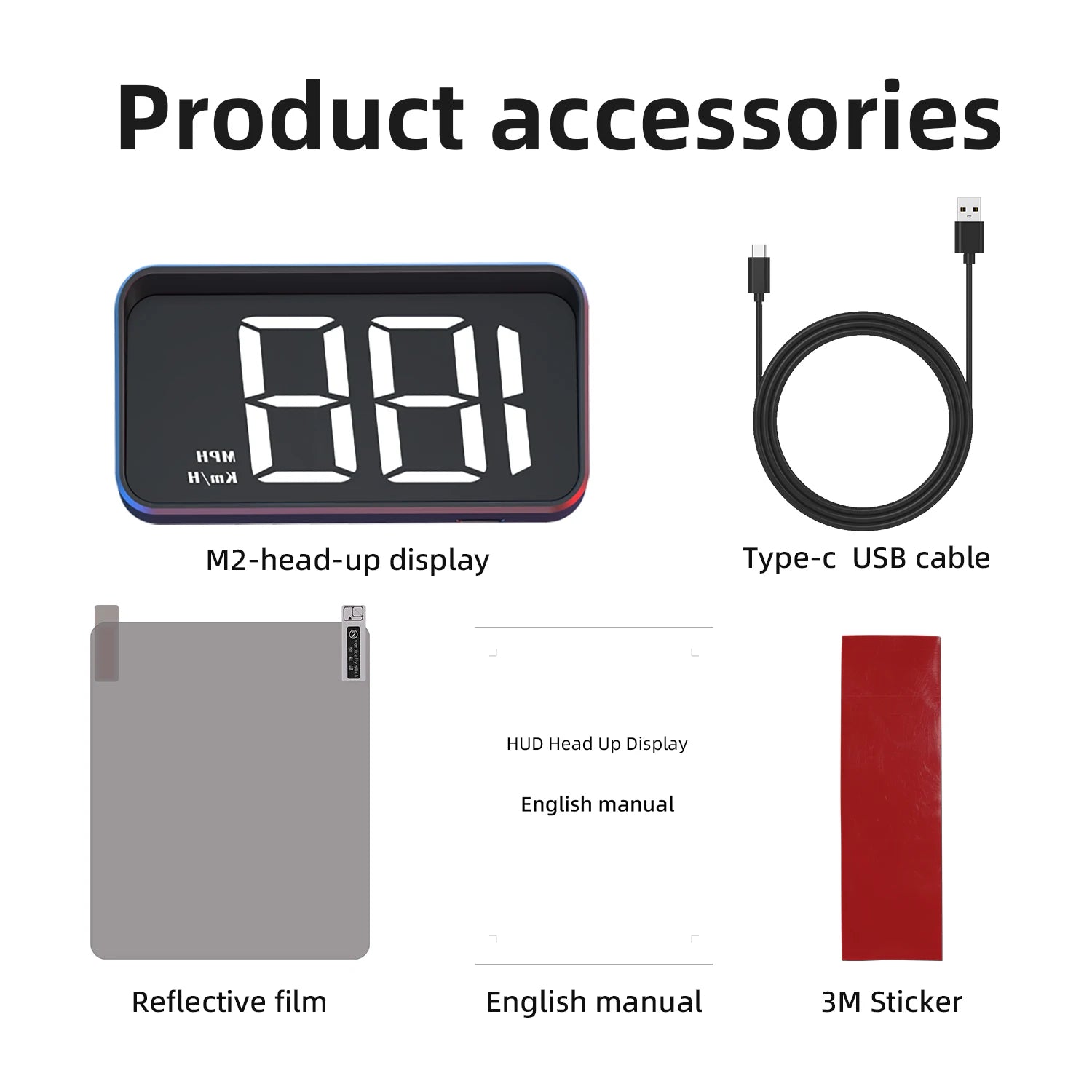

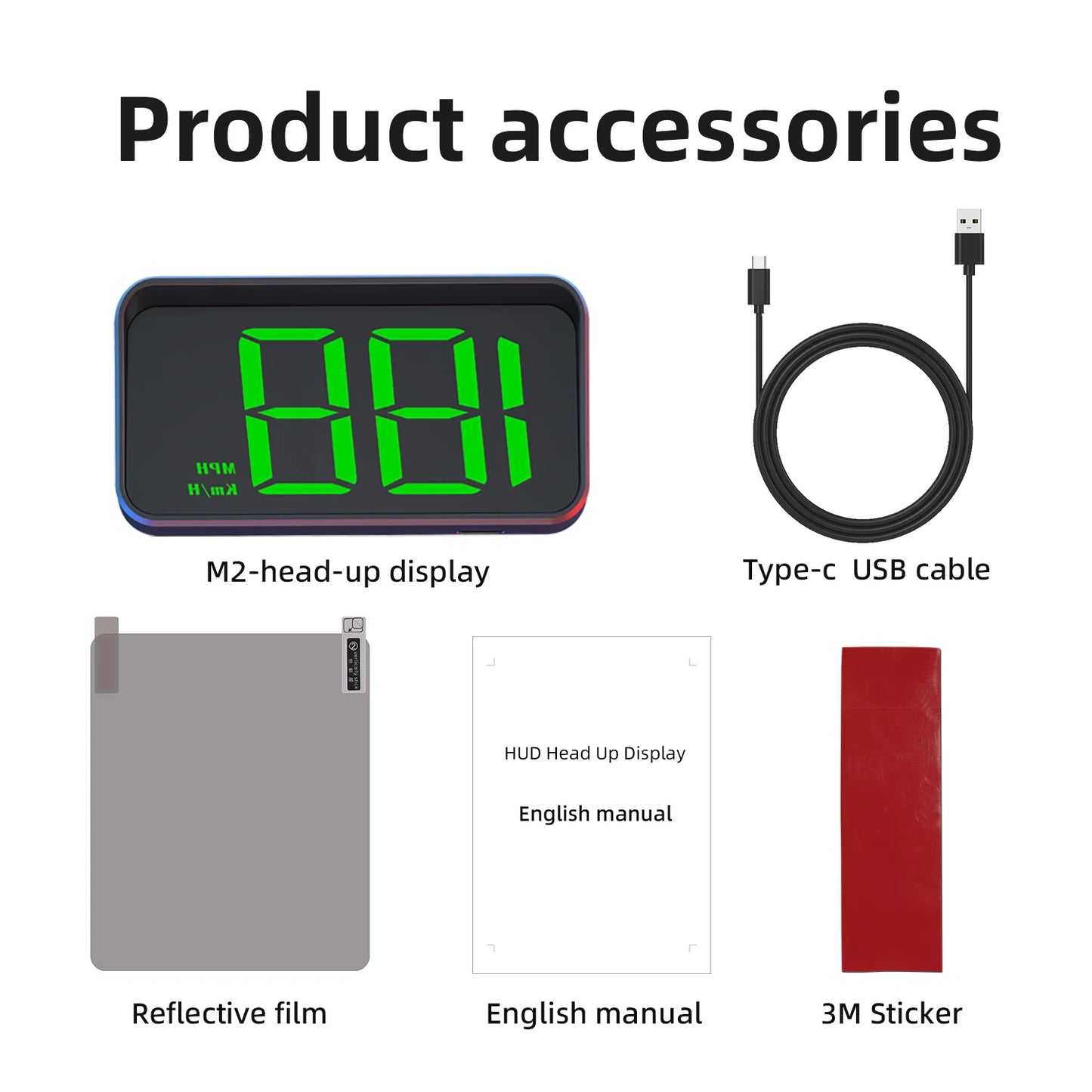

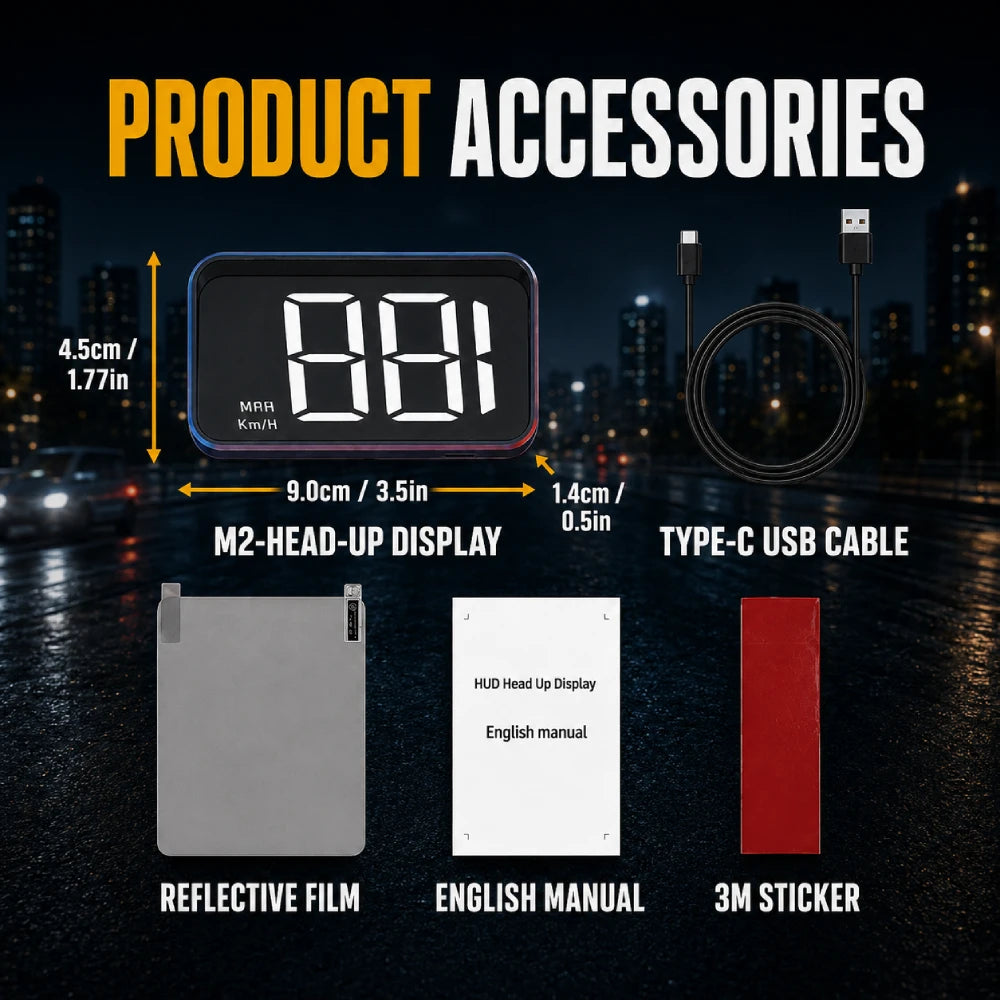

Package Includes:

• 1 × M2 GPS HUD Unit

• 1 × Cigarette Lighter Power Cable

• 1 × Reflective Film Sheet

• 1 × User Manual

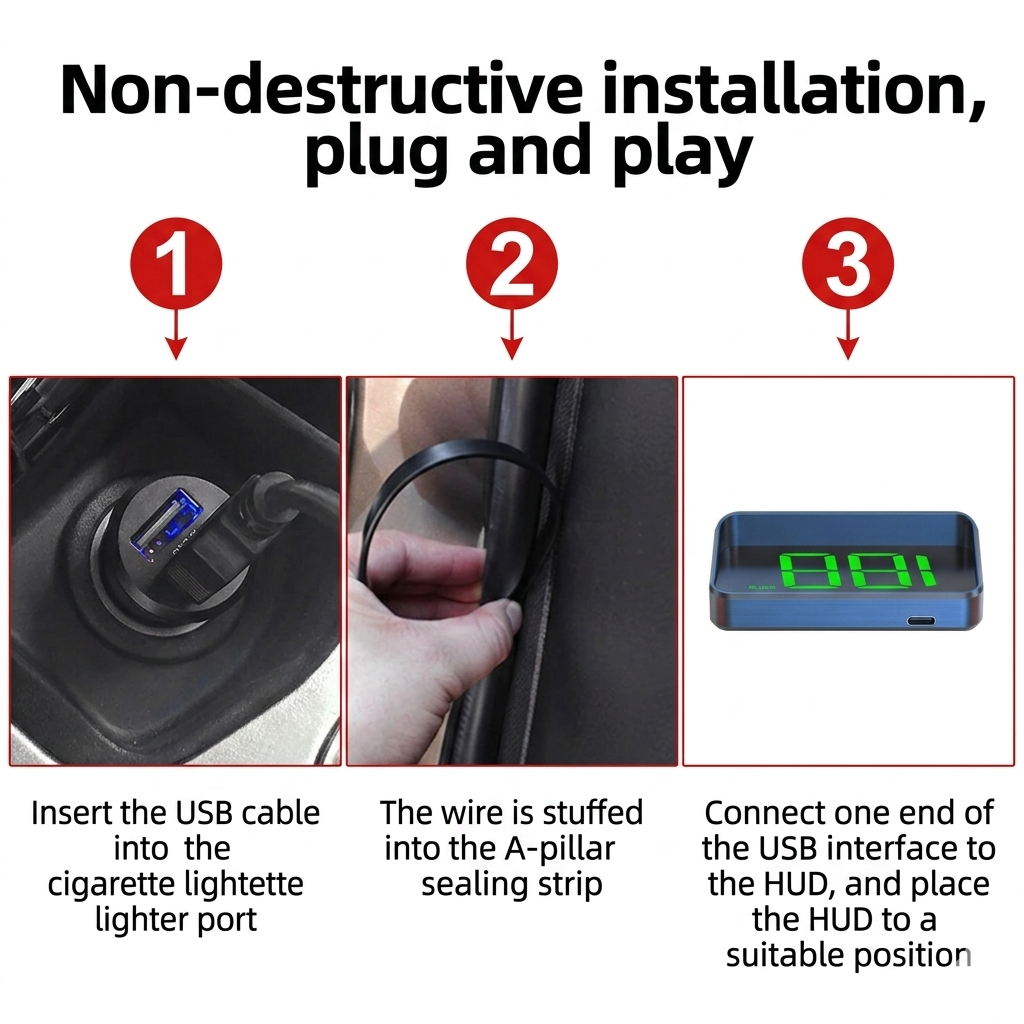

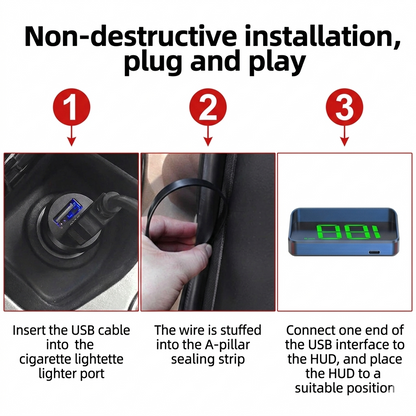

Installation Steps:

1. Place the unit on a clean, flat dashboard area in front of the driver
2. Clean the windshield directly above the unit, then apply the reflective film
3. Plug the power cable into the cigarette lighter (or USB port)
4. Start the engine - wait 1–3 minutes outdoors for the first GPS satellite lock
5. Speed will display automatically once the satellite signal is acquired

Important Notes:

• GPS reading vs. vehicle speedometer: The HUD's GPS speed is a reference only. Your vehicle's built-in speedometer remains the calibrated, legal reference for traffic regulations.

• GPS coverage: Signal may be temporarily lost in tunnels, underground parking, or between tall buildings - display will resume once the signal is reacquired.

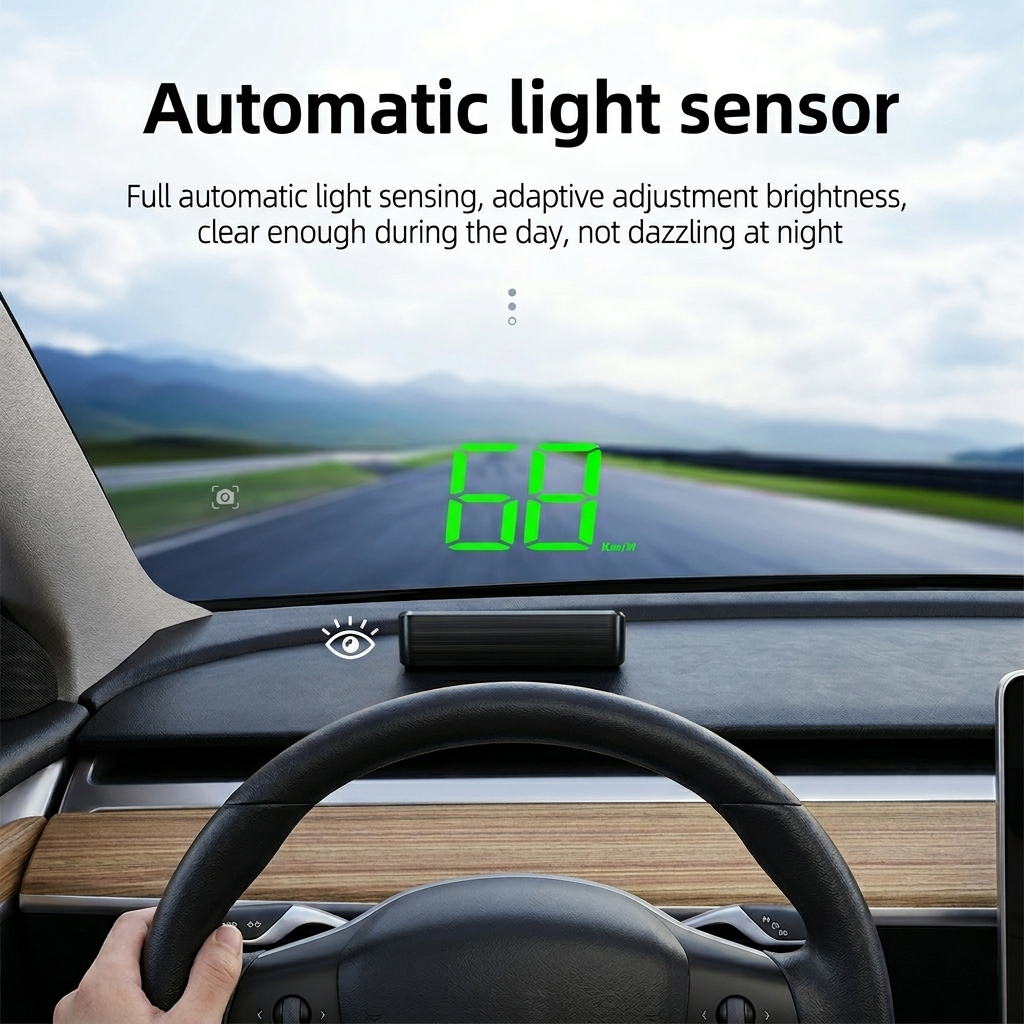

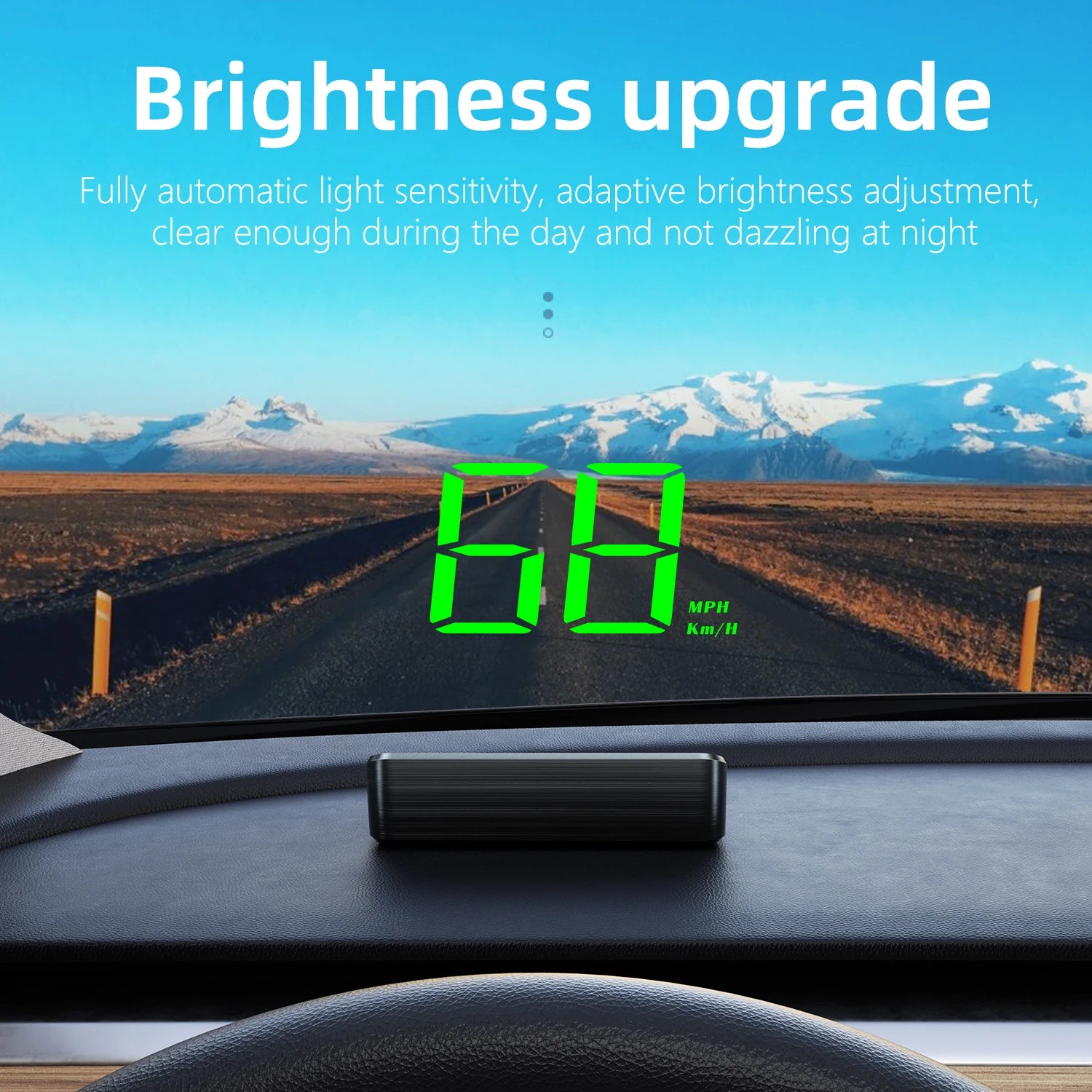

• Daytime visibility: Reflective film performance depends on ambient light. For best clarity, install on a clean glass surface and avoid direct sunlight on the unit itself.

• Power source: This model does not read OBD data. It only requires 12–24V power; no diagnostic port connection is needed.
